Normativas aplicadas

Instalación de BT en edificio

EISinsp Competences: Low Voltage Electrical Installation Safety Inspection
EISc Competences: Low Voltage Electrical Installation Safety for Contractors and Maintainers
IEC/EN 60364 Electrical Installations for Buildings series
IEC/EN 60364-6 Electrical Installations for Buildings - Verification
IEC/EN 60364-4-41 Electrical Installations for Buildings - Protection against electric shock
IEC/EN 60755 General safety requirements for residual current operated protective devices
IEC/EN 61008-1 Residual current operated circuit-breakers without integral overcurrent protection for household and similar uses (RCCBs)
IEC/EN 61009 Residual current operated circuit-breakers with integral overcurrent protection for household and similar uses (RCBOs)
IEC/EN 61557 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - series
IEC/EN 61557-1 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 1: General requirements
IEC/EN 61557-2 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 2: Insulation resistance
IEC/EN 61557-3 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 3: Loop impedance
IEC/EN 61557-6 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 6: Effectiveness of residual current devices (RCD) in TT, TN and IT systems
IEC/EN 61557-7 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 7: Phase sequence
IEC/EN 61557-10 Electrical safety in low voltage distribution systems up to 1 000 v a.c. and 1 500 v d.c. - Equipment for testing, measuring or monitoring of protective measures - Part 10: Combined measuring equipment for testing, measuring and monitoring of protective measures
VDE 0413 (IEC 61557) Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - series
AS / NZ 3017 Electrical installations – Verification guidelines
AS / NZ 3018 Electrical installations - Domestic installations
BS 7671 IEE Wiring Regulations (18th edition)
CEI 64.8 V4 rated electrical equipment not exceeding 1,000 VAC and 1,500V DC current

Protección contra rayos y puesta a tierra

LPSinsp Competences: Lightning Protection of Buildings Inspection
LPSc Competences: Lightning Protection of Buildings for Contractors and Maintainers
IEC 62305 Protection against lightning - series
IEC/EN 61557-5 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 5: Resistance to earth
IEC/EN 61557-4 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 4: Resistance of earth connection and equipotential bonding

Calidad de la energía

IEC/EN 61557-12 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 12: Power metering and monitoring devices (PMD)

Seguridad eléctrica de las unidades móviles

eMOB Competences: Electrical LV Installations in Mobile Units Safety
IEC/EN/HD 60364-7-717 Low-voltage electrical installations: Requirements for special installations or locations – Supplies for Electrical Vehicles
ISO 6469-3 - Electrically propelled road vehicles Safety specification Part 3: Electrical safety

Equipo de suministro de vehículos eléctricos

EVSE Competences: Electrical Vehicle Supply Equipment Safety
IEC/EN 61851 Electric vehicle conductive charging system
IEC/EN 62752 In-cable control and protection device for mode 2 charging of electric road vehicles (IC-CPD)

Equipo médico eléctrico

AS/NZS 3551 Management programs for medical devices

Instalaciones de salas médicas y quirófanos

MEDi Competences: Medical and Surgery Rooms Electrical Installations Safety

Seguridad del instrumento respecto del usuario

Normativa EMC 89/336/EE sobre compatibilidad electromagnética
IEC/EN 61010 Safety requirements for electrical equipment for measurement, control, and laboratory use - series
IEC/EN 61010-2-033 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 2-033: Particular requirements for hand-held multimeters and other meters for domestic and professional use, capable of measuring mains voltage

Seguridad de CEM

IEC/EN 61326 Electrical equipment for measurement, control and laboratory use - EMC requirements - series

Características

Características clave

Batería de iones de litio de 5,2 Ah;

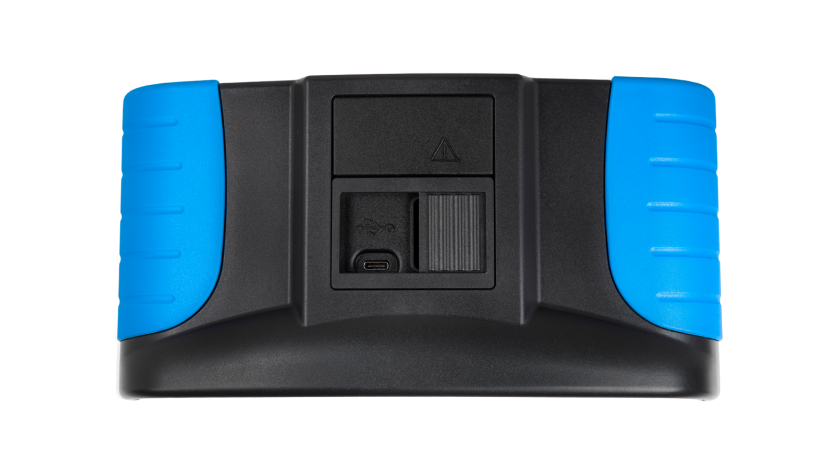

Conector universal USB tipo C para carga rápida (15 V, 3 A, 45 W) y comunicación con PC;

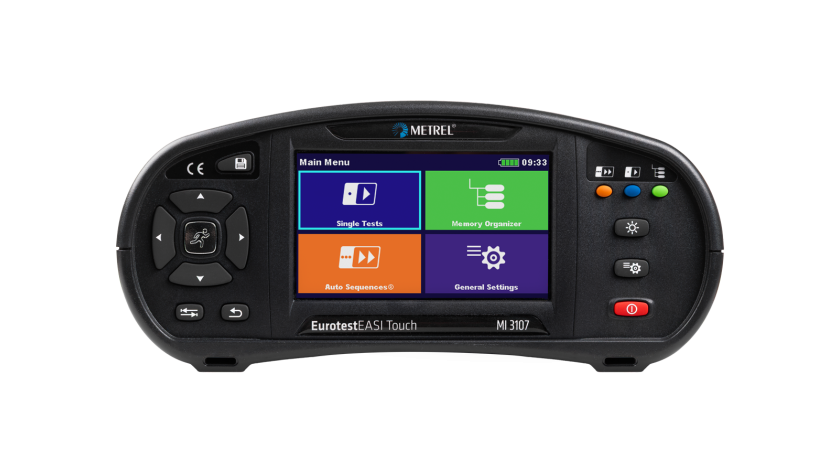

Manipulación rápida a través de una pantalla táctil en color de alta resolución TFT de 4,3" para la preparación de pruebas y el almacenamiento de datos;
Separación del tipo de RCD y la forma de corriente en las mediciones de RCD;
Procedimiento de prueba de RCD automatizado (RCD AUTO);
Pruebas automáticas predefinidas:
- Auto TT;
- Auto TT RCD;
- Auto TN;
- Auto TN RCD;
AUTO SEQUENCEs predefinidas;
Pantallas de ayuda integradas para consultar in situ;
Tablas de fusibles integradas para la evaluación automática del resultado de la impedancia de línea / bucle;
Monitoreo de la tensión L-N, L-PE, N-PE en tiempo real;
Inversión automática de la polaridad en la prueba de continuidad;
Filtrado de mediciones por grupo de áreas seleccionado;
Conectividad Wi-Fi y Bluetooth® para una comunicación rápida con Metrel Cloud para la planificación de mediciones, la gestión de datos y la generación de informes. *
Compatible con Metrel Cloud Storage.
Compatible con la Metrel Cloud App.
Software para PC Metrel ES Manager: Permite crear estructuras de pruebas, informes de pruebas profesionales y transferencia de datos para archivado. *

* Disponible con las licencias MESM PRO y Metrel Cloud.

Usado para

Pruebas e inspecciones iniciales y periódicas de instalaciones de baja tensión domésticas y de pequeñas oficinas;
Pruebas en sistemas de TT y TN;
Pruebas de seguridad y riesgos de incendio;
Solución de problemas de instalación;
Pruebas de cargadores de vehículos eléctricos (EVSE);
Mantenimiento (p. ej. después de una reparación);
Puesta a tierra de baja tensión y protección contra rayos.
