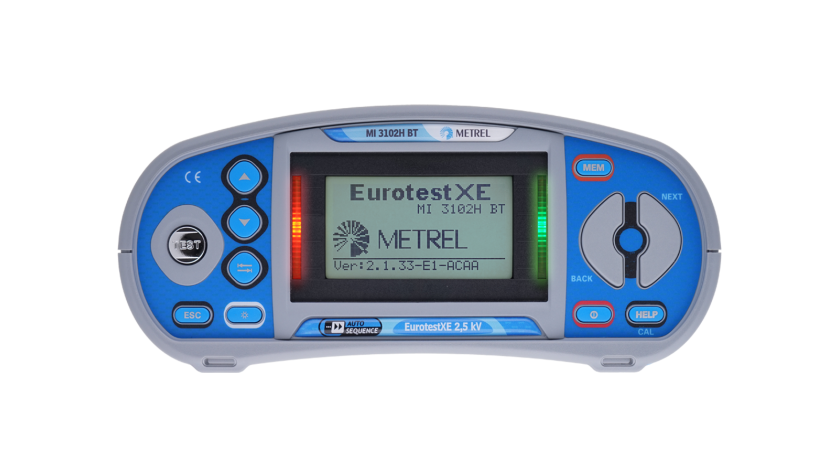

MI 3102H BT EurotestXE 2,5 kV
Comprobadores multifunción
MI 3102H BT EurotestXE 2,5 kV es un equipo de medida multifunción que, además de todas las funciones necesarias para la comprobación total de la seguridad de instalaciones según la norma IEC/EN 61557, realiza la medición de la resistencia de aislamiento con una tensión de prueba de hasta 2,5 kV (rango de medida hasta 20 GΩ) y permite la prueba de diagnóstico por PI y el cálculo indexado DAR. Además, el MI 3102H BT EurotestXE permite monitorizar la tensión en línea, comprobar la secuencia de fase y medir la resistencia de tierra, la iluminancia y la corriente TRMS. EurotestXE está equipado con las características integradas de fusibles y RCD para la evaluación PASA / NO PASA de los resultados de las pruebas. Todos los resultados se pueden guardar y consultar rápidamente en el equipo y descargarlos a un PC mediante el software EuroLink PRO (incluido en el kit estándar) para evaluarlos y generar informes profesionales después de las pruebas.

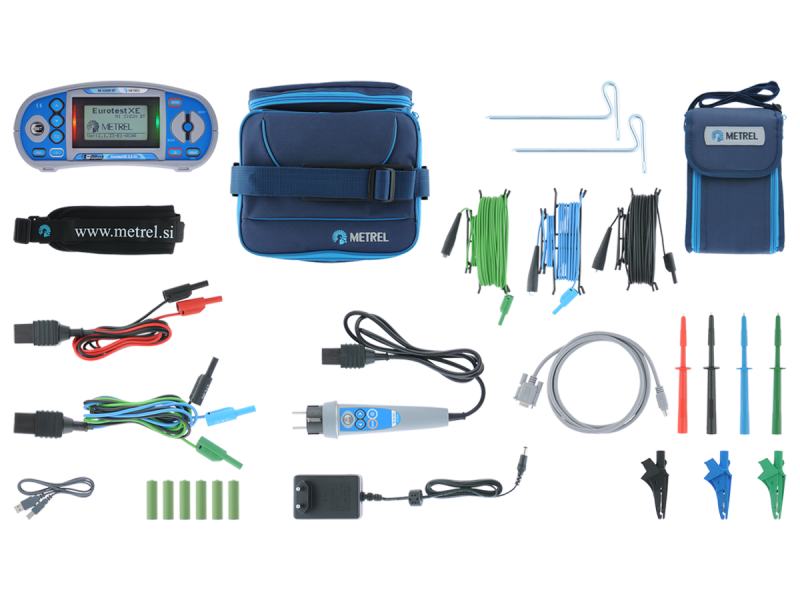

Kits
Normativas aplicadas
Instalación de BT en edificio
- EISinsp Competences: Low Voltage Electrical Installation Safety Inspection
- EISc Competences: Low Voltage Electrical Installation Safety for Contractors and Maintainers
- IEC/EN 60364 Electrical Installations for Buildings series
- IEC/EN 60364-6 Electrical Installations for Buildings - Verification
- IEC/EN 60364-4-41 Electrical Installations for Buildings - Protection against electric shock
- IEC/EN 60755 General safety requirements for residual current operated protective devices
- IEC/EN 61008-1 Residual current operated circuit-breakers without integral overcurrent protection for household and similar uses (RCCBs)
- IEC/EN 61009 Residual current operated circuit-breakers with integral overcurrent protection for household and similar uses (RCBOs)
- IEC/EN 61557 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - series
- IEC/EN 61557-1 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 1: General requirements
- IEC/EN 61557-2 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 2: Insulation resistance
- IEC/EN 61557-3 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 3: Loop impedance
- IEC/EN 61557-6 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 6: Effectiveness of residual current devices (RCD) in TT, TN and IT systems
- IEC/EN 61557-7 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 7: Phase sequence
- IEC/EN 61557-10 Electrical safety in low voltage distribution systems up to 1 000 v a.c. and 1 500 v d.c. - Equipment for testing, measuring or monitoring of protective measures - Part 10: Combined measuring equipment for testing, measuring and monitoring of protective measures
- VDE 0413 (IEC 61557) Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - series
- AS / NZ 3017 Electrical installations – Verification guidelines
- BS 7671 IEE Wiring Regulations (18th edition)
- CEI 64.8 V4 rated electrical equipment not exceeding 1,000 VAC and 1,500V DC current
Protección contra rayos y puesta a tierra
- LPSinsp Competences: Lightning Protection of Buildings Inspection
- LPSc Competences: Lightning Protection of Buildings for Contractors and Maintainers
- IEC 62305 Protection against lightning - series
- IEC/EN 61557-5 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 5: Resistance to earth
- IEC/EN 61557-4 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 4: Resistance of earth connection and equipotential bonding
Calidad de la energía
- PQA Competences: Power Quality Analyzing & Reporting
- IEC/EN 61557-12 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 12: Power metering and monitoring devices (PMD)
Seguridad del instrumento respecto del usuario
- IEC/EN 61010 Safety requirements for electrical equipment for measurement, control, and laboratory use - series
- IEC/EN 61010-1 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 1: General requirements
Seguridad de CEM
- IEC/EN 61326 Electrical equipment for measurement, control and laboratory use - EMC requirements - series
- IEC/EN 61326-1 Electrical equipment for measurement, control and laboratory use - EMC requirements - Part 1: General requirements
Características
Funciones de medición
- Resistencia de aislamiento con tensiones DC desde 50 V hasta 2,5 kV y calculo del PI y DAR
- Continuidad de los conductores PE con corrientes de prueba 200 mA DC y cambio de polaridad
- Continuidad de los conductores PE con prueba de corriente a 7 mA sin caída del RCD
- Continuidad RPE con 200 mA AC en la salida
- Impedancias de línea/bucle
- Impedancia de bucle con función de bloqueo de disparo del RCD
- Tensiones y frecuencias TRMS
- Secuencia de fase
- Potencia y armónicos
- Pruebas RCD (general y selectivos, tipo AC, A, F)
- Resistencia de tierra (métodos de 3 hilos y 2 pinzas)
- Resistividad del terreno con adpatador Ro (opcional)
- Corriente de fuga TRMS y corrientes de las cargas (opcional)
- Iluminación (opcional)
Características clave
- AUTOSECUENCIA predefinido mini
- Auto TT (U, Zln, Zs, Rpe)
- Auto TN/RCD (U, Zln, Zs, Rpe)
- Auto TN (U, Zln, Zlpe, Rpe) - Amplio rango de tensiones de prueba para aislamiento desde 100 V hasta 2500 V, lecturas cada 20 GΩ
- Diagnostico de aislamiento: Indice de polaricación (PI) e índice de absorción dieléctrica (DAR) calculado
- Mediciones de potencia y análisis de armónicos
- Pantallas de ayuda integradas
- Tablas de fusible integradas para una evaluación automática de los resultados de impedancias de línea/bucle
- Monitorización de las 3 tensiones en tiempo real
- Inversión automática de la polaridad en la prueba de continuidad
- Prueba de impedancia de bucle sin disparo del RCD
- Cargador y recargador de baterías integrado como accesorio estándar
- Prueba automática de RCD
- Comunicación Bluetooth con PC, tabletas Android y “smartphones”
- Software PC EuroLink PRO descarga parámetros y resultados de la prueba y crea informes de la prueba
- APP Android Eurolink (opción)
Datos técnicos
- Tamaño: 230 x 103 x 115 mm
- Peso (sin accesorios): 1,3 Kg
