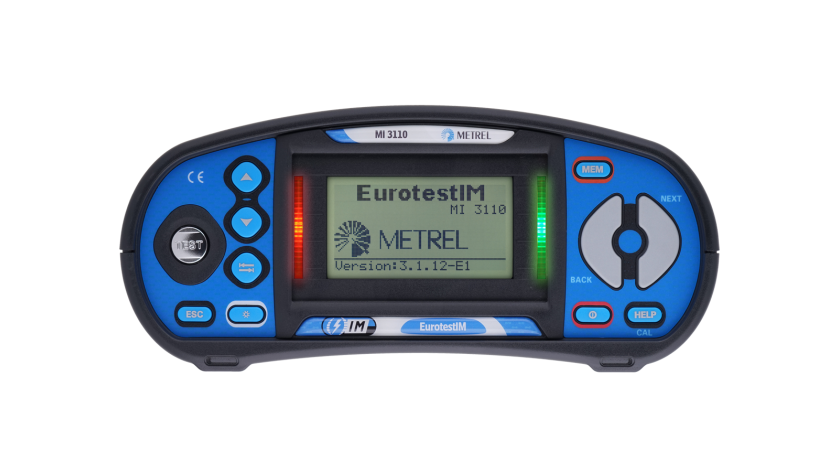

MI 3110 EurotestIM

Comprobadores mono-función

El MI 3110 EurotestIM es la herramienta perfecta para comprobar sistemas IT integrados de forma permanente o móviles con fuentes de alimentación de la instalación eléctrica de baja tensión provenientes de generador o transformador.

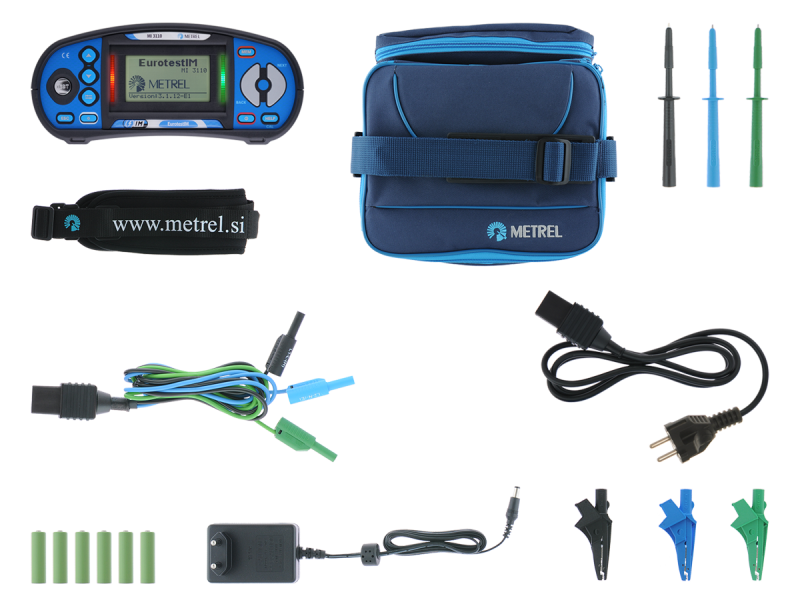

Kits

Normativas aplicadas

Instalación de BT en edificio

  • EISinsp Competences: Low Voltage Electrical Installation Safety Inspection
  • EISc Competences: Low Voltage Electrical Installation Safety for Contractors and Maintainers
  • IEC/EN 60364 Electrical Installations for Buildings series
  • IEC/EN 60364-6 Electrical Installations for Buildings - Verification
  • IEC/EN 60364-4-41 Electrical Installations for Buildings - Protection against electric shock
  • IEC/EN 61557 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - series
  • IEC/EN 61557-1 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 1: General requirements
  • IEC/EN 61557-3 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 3: Loop impedance
  • IEC/EN 61557-10 Electrical safety in low voltage distribution systems up to 1 000 v a.c. and 1 500 v d.c. - Equipment for testing, measuring or monitoring of protective measures - Part 10: Combined measuring equipment for testing, measuring and monitoring of protective measures
  • IEC/EN 60364-7 Electrical Installations for Buildings - Requirements for special installations or locations
  • AS / NZ 3017 Electrical installations – Verification guidelines
  • BS 7671 IEE Wiring Regulations (18th edition)

Seguridad eléctrica de las unidades móviles

  • eMOB Competences: Electrical LV Installations in Mobile Units Safety
  • IEC/EN/HD 60364-7-717 Low-voltage electrical installations: Requirements for special installations or locations – Supplies for Electrical Vehicles

Instalaciones de salas médicas y quirófanos

  • MEDi Competences: Medical and Surgery Rooms Electrical Installations Safety
  • IEC/EN 60364-7-710 Requirements for special installations or locations – Medical Location

Seguridad de CEM

  • IEC/EN 61326 Electrical equipment for measurement, control and laboratory use - EMC requirements - series
  • IEC/EN 61326-1 Electrical equipment for measurement, control and laboratory use - EMC requirements - Part 1: General requirements

Características

Funciones de medición

  • DC insulation resistance  with test voltages up to 1000V,
  • PE conductor continuity test,
  • Loop and Line impedance also  without RCD triggering,
  • RCD analysing, with automatic test, test of dI, dt, Uc and earth Rs loop test,
  • Measurements on Earthing and Lightning systems with included Two Clamp method
  • Phase sequence  in 3-phase systems,
  • Additional measuring functions on Power, Energy, Harmonics, Varistor, illumination,...
  • Reconocimiento de sistemas IT, Rango de tension y tensiones equilibradas
  • ISFL corriente de fuga desde fase 1 y fase 2 a PE
  • Evaluación del disparo de fusible, impedancia de línea y Posible corriente de cortocircuito Ipsc
  • Aislamiento IMD / ELM fuga a tierra / RCM Dispositivo de monitoreo de control de la corriente residual
  • Alarma de disparo o control y ajuste del disparo

Datos técnicos

Tamaño: 230 x 103 x 115 mm
Peso (sin accesorios): 1.3 kg

Aplicaciones

Ubicaciones especiales

  • Sistema de TI

Salas de cirugía o quirófanos

  • Sistema TI médico
  • Los DCR de zonas aisladas

Fuentes de energía auxiliar en la sanidad

  • Ambulancias
  • Hospital de campaña

Mantenimiento preventivo

  • Medidas de tensión

Solución de problemas

  • Solución de problemas de instalación

Especificaciones

Descargas

Tipo Nombre Idioma Versión Fecha Notas Tipo Tamaño Online Descargar
Datasheet MI 3110 EurotestIM en 1.0 19.12.2012 pdf 410.18 KB
Manual MI 3110 EurotestIM en 1.1 28.01.2013 20 752 063 pdf 1006.83 KB Acceso
PC Software SW 0101 EuroLink PRO (EU) en 4.37 09.06.2021 Readme zip 60.59 MB Acceso
